Placement on Vehicle: FrontPackage Included: 1x Oil Pump
Notes:Instruction is not included. Professional installation is recommended
Replaces OE Number:M295 12586665 22443645, 6012106, OP3165, EP295, 224-43645, 601-2106,8-12586-665-0
Fitment for for Chevy/GMC 2003-2014 for Chevy Express 1500/GMC Savana 1500
2003-2018 for Chevy Express 2500/GMC Savana 2500
2003-2005 for Chevy Express 3500/GMC Savana 3500
2008-2018 for Chevy Express 3500/GMC Savana 3500
2001-2006 for Chevy Silverado 1500 HD/GMC Sierra 1500 HD
2007 for Chevy Silverado 1500 HD Classic/GMC Sierra 1500 HD Classic
1999-2004 for Chevy Silverado 2500/GMC Sierra 2500
2002-2005 for Chevy Silverado 2500 HD/GMC Sierra 2500 HD
2007-2018 for Chevy Silverado 2500 HD/GMC Sierra 2500 HD
2007-2018 for Chevy Silverado 3500 HD/GMC Sierra 3500 HD
Fitment for for Chevy 2007-2013 for Chevy Avalanche/2002-2006 for Chevy Avalanche 1500
2014-2017 for Chevy SS/2003-2006 for Chevy SSR
1999-2002 for Chevy Silverado 1500/2004-2012 for Chevy Silverado 1500
2004-2005 for Chevy Silverado 3500
2000-2014 for Chevy Suburban 1500/2016-2017 for Chevy Suburban 3500 HD
2007-2013 for Chevy Suburban 2500/2000 for Chevy Suburban 2500
2006-2009 for Chevy Trailblazer/2003-2005 for Chevy Trailblazer EXT
2001-2012 for Chevy Tahoe/1998-2012 for Chevy Camaro
1997-2013 for Chevy Corvette/2009 for Chevy Colorado
2016-2018 for Chevy LCF 3500
Fitment for GMC 2009 Canyon
2003-2005 Envoy/Envoy XL
2004-2005 Envoy XUV
1999-2000 Sierra 1500
2005-2006 Sierra 1500
2008-2012 Sierra 1500
2003-2005 Sierra 3500
2001-2012 Yukon
2000-2012 Yukon XL 1500
2010-2013 Yukon XL 2500
Fitment for Cadillac / for for Hummer / for Pontiac 2004-2007 for Cadillac CTS
2003-2006 for Cadillac Escalade/Escalade ESV/Escalade EXT
2003-2007 for Hummer H2
2008-2009 for Hummer H3
2009 for Hummer H3T
2003-2004 for Isuzu Ascender
1998-2002 for Pontiac Firebird
2004-2006 for Pontiac GTO
2001-2004 for Avanti II
2004 for Buick Rainier
Specifications
| Brand |
BOXI |
| Condition |
New |
| Finish |
Rust Preventative |
| Cotter Pin Included |
No |
| Rotor Material |
Powdered Metal |
| Springs Included |
No |
| Cover Material |
Cast Aluminum |
| High Volume |
No |
| Pump Pressure |
Standard |
| Governor Spinner Included |
No |
| Drive Style |
Crankshaft |
| Intermediate Shaft Included |
No |
| Pump Volume |
Standard |
| Pump Cover Included |
Yes |
| Housing Material |
Aluminum |
| Hardware Included |
No |
| Number Of Mounting Holes |
4 |
| Gears Included |
Yes |
| Height (in) |
4.660 Inch |
| Height (mm) |
118mm |
| Width (in) |
8 Inch |
| Width (mm) |
203mm |
| Inlet Size (in) |
0.875 Inch |
| Inlet Size (mm) |
22mm |
| Mounting Hole Diameter (in) |
0.360 Inch |
| Mounting Hole Diameter (mm) |
10mm |
| Pick Up Tube Diameter (in) |
0.875 Inch |
| Pick Up Tube Diameter (mm) |
22mm |
| Guide Included |
No |
| Bolts Included |
No |

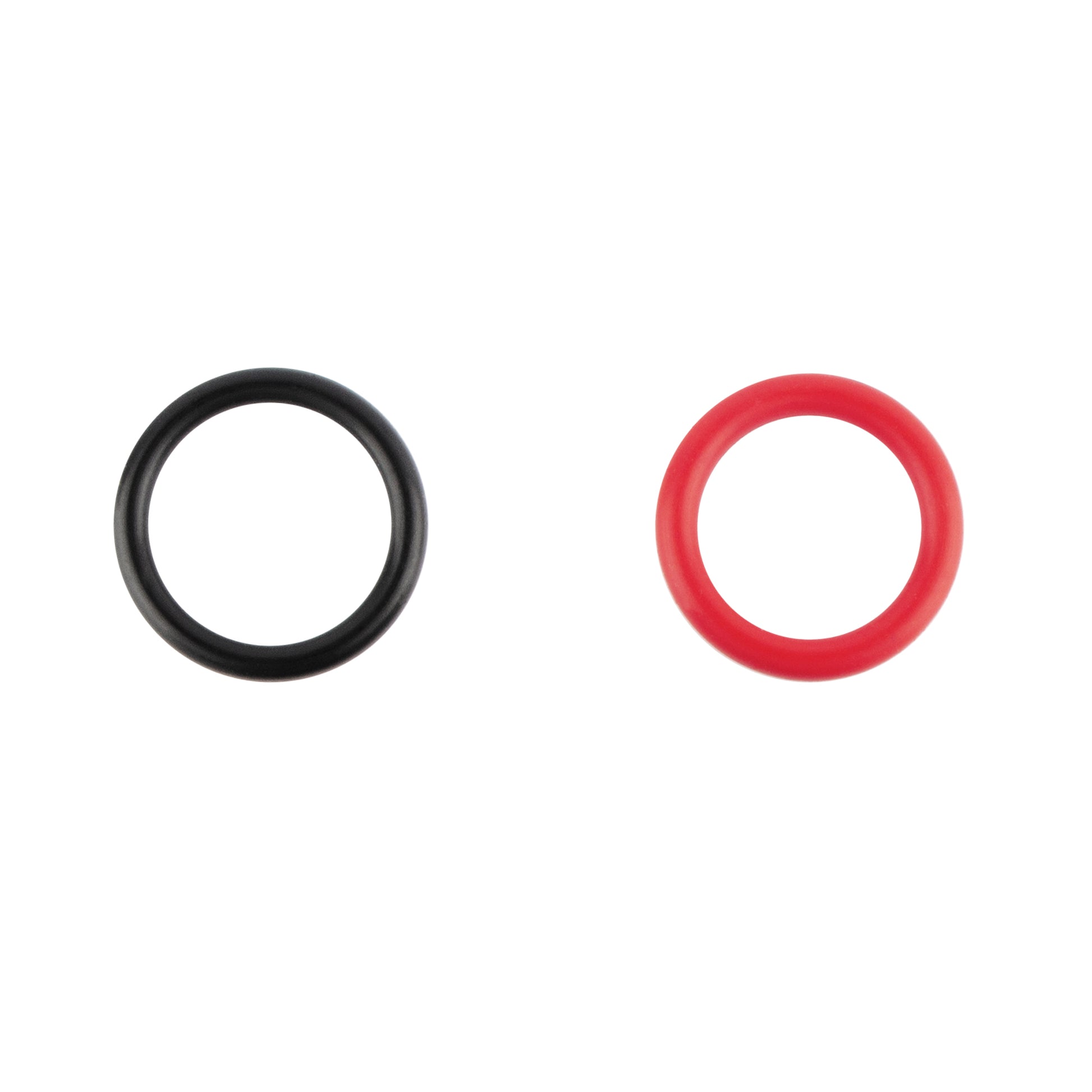

| O-Ring Included |
Yes |
| Adjustable Relief Valve Included |
No |
| Nylon Bushing Included |
No |
| Washers Included |
No |
| Pickup Screen Included |
No |
| Timing Cover Included |
No |
| Drive Shaft Included |
No |
| Bushing Included |
No |
| High Pressure |
No |
| Spacer Included |
No |
| Gasket Or Seal Included |
Yes |
| Warranty Terms |
Two Year |
| Interchange Part Number |
8-12586-665-0, 689068, OP3165, EM-295, EP295, EPK152, PO26-M295, SKOM295, M295, 601-8191, 601-2106, 224-43645, 17801830, 12710303, 12696357, 12678151, 12674648, 12606311, 12586665, 12563964, 12563570, 12556434 |
