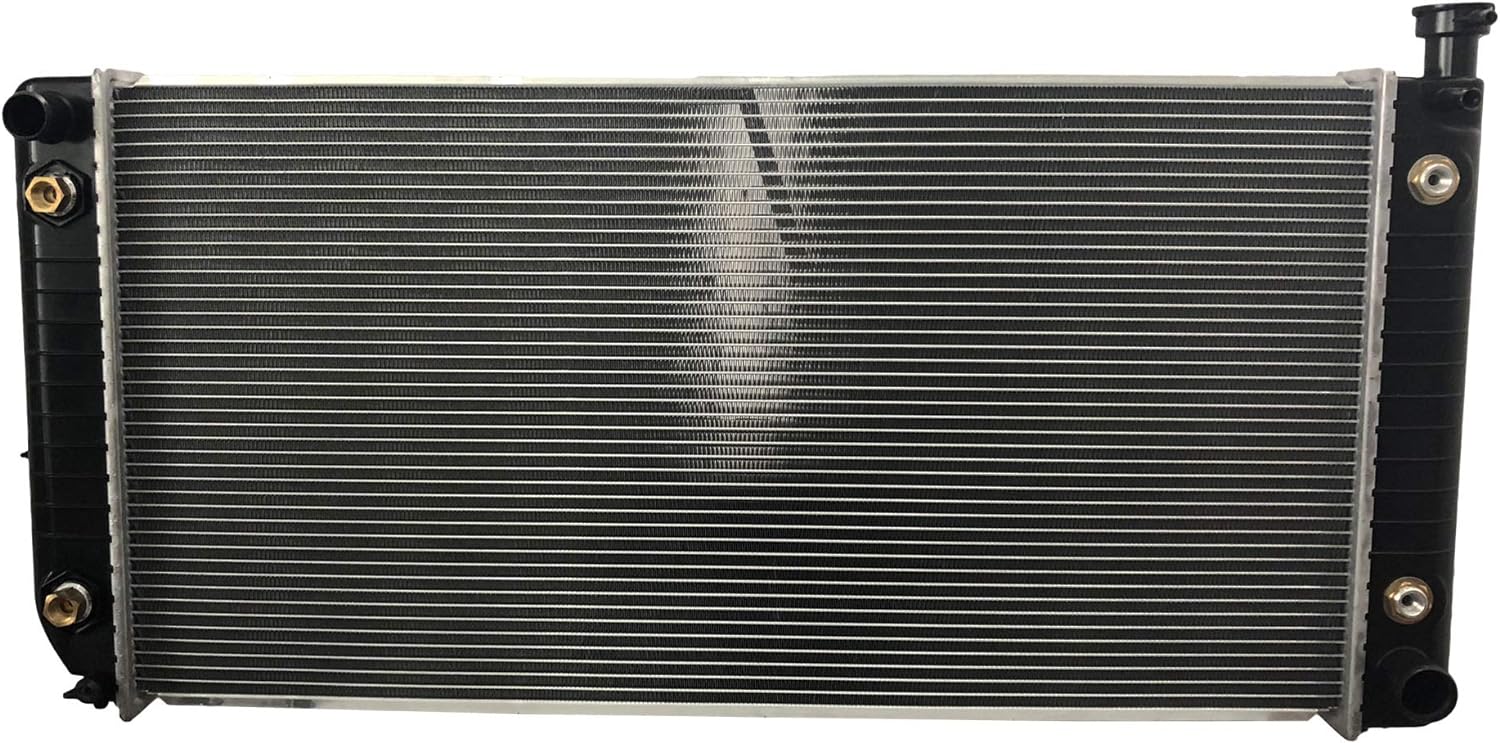

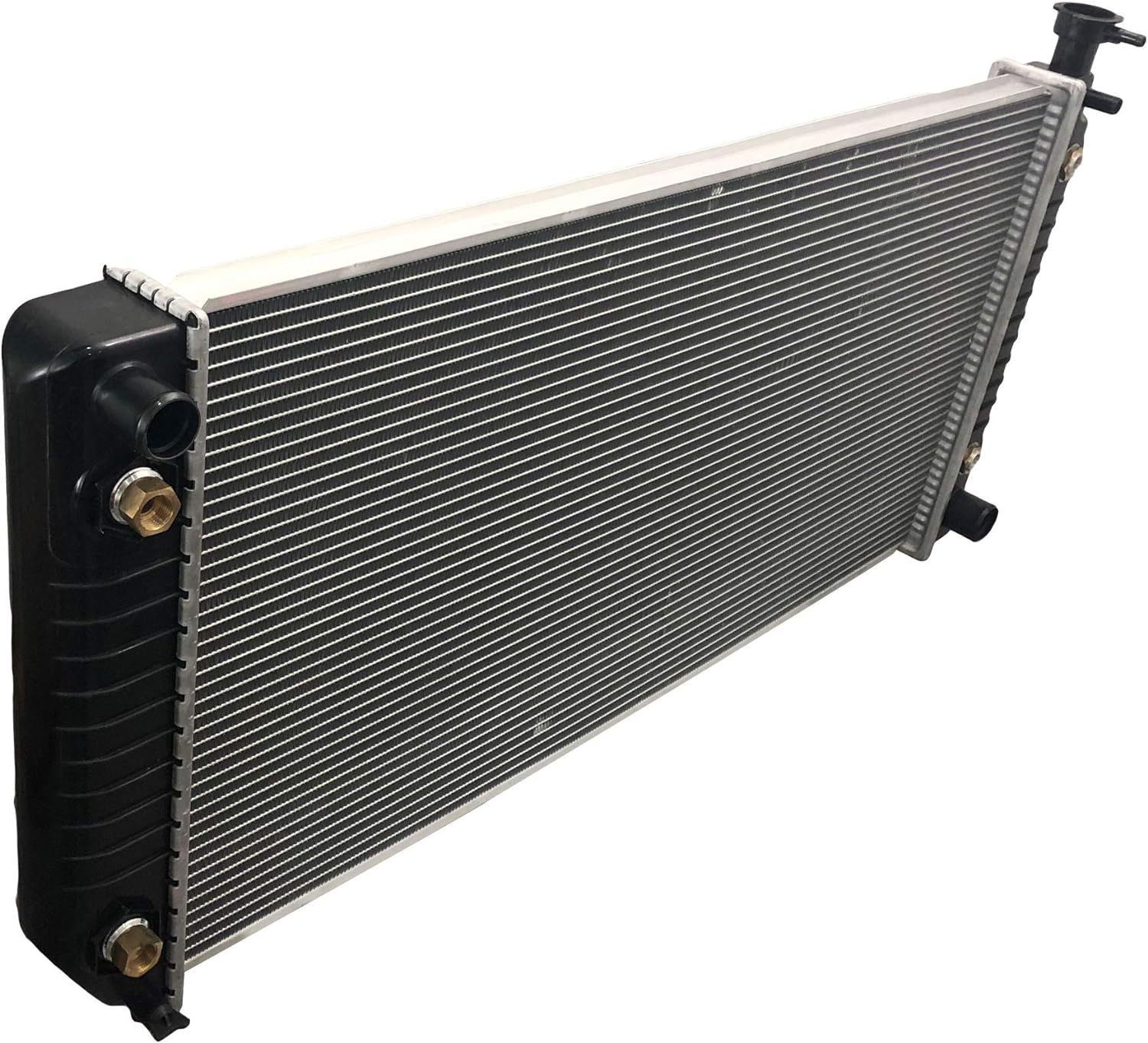

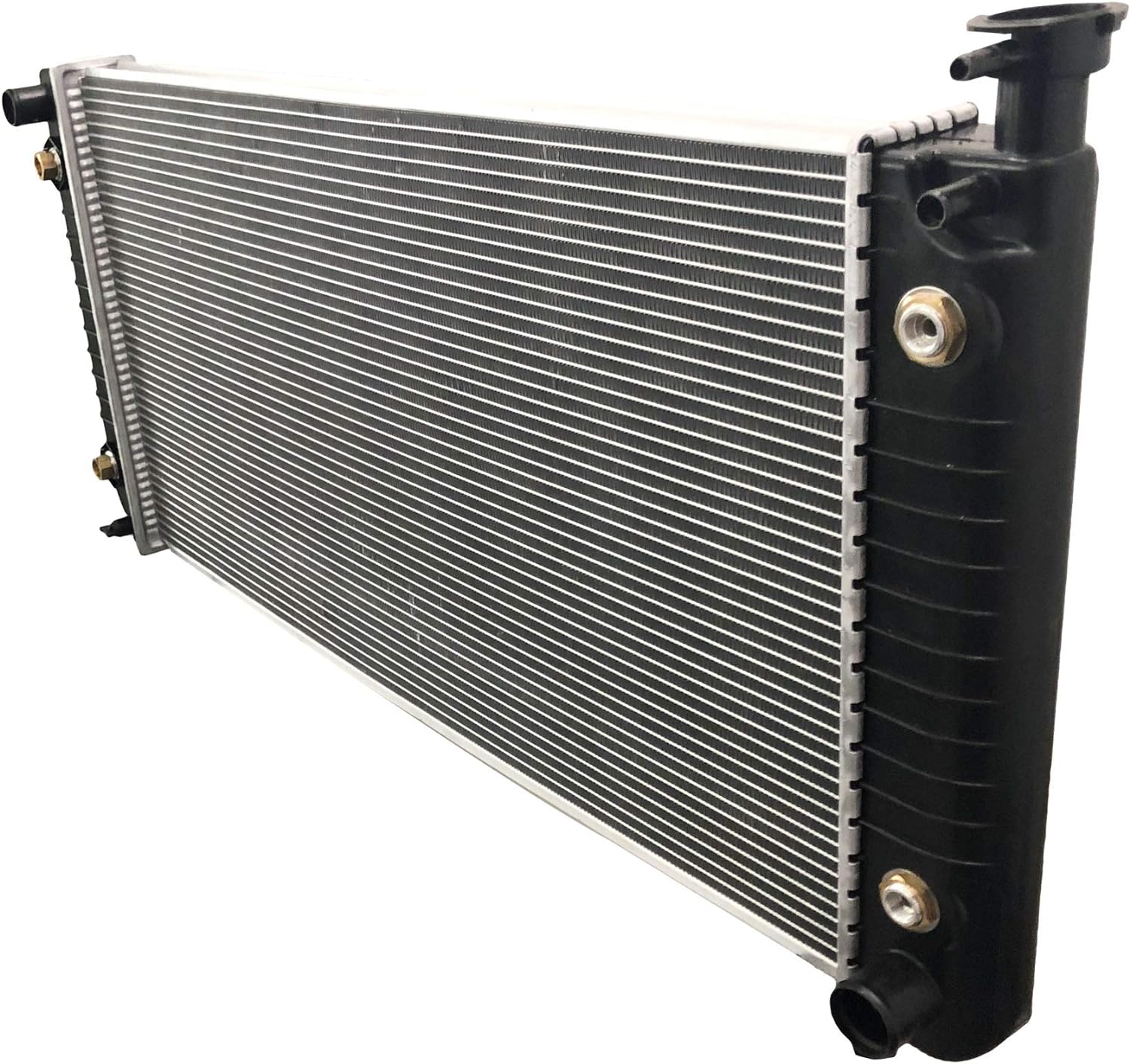

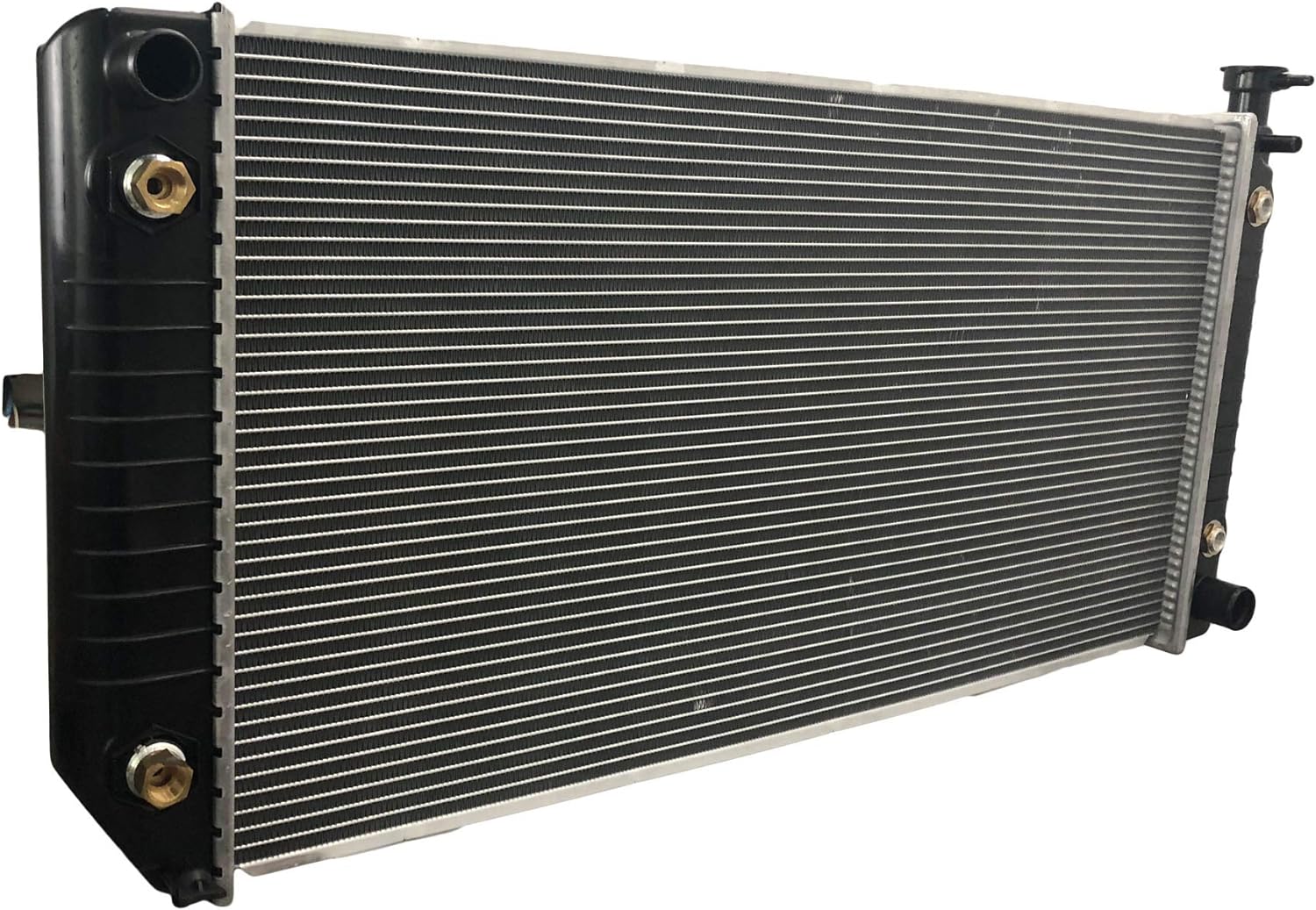

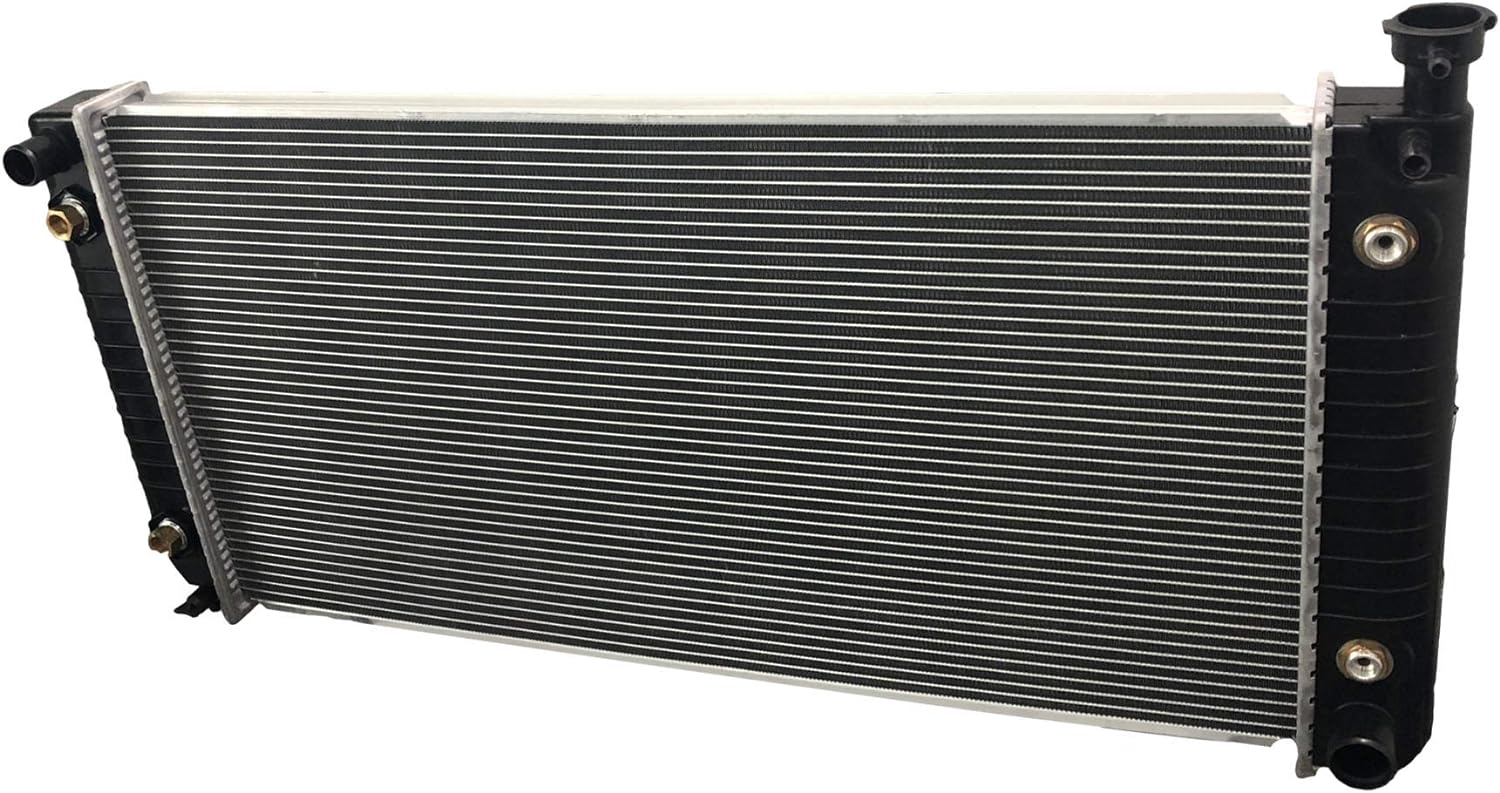

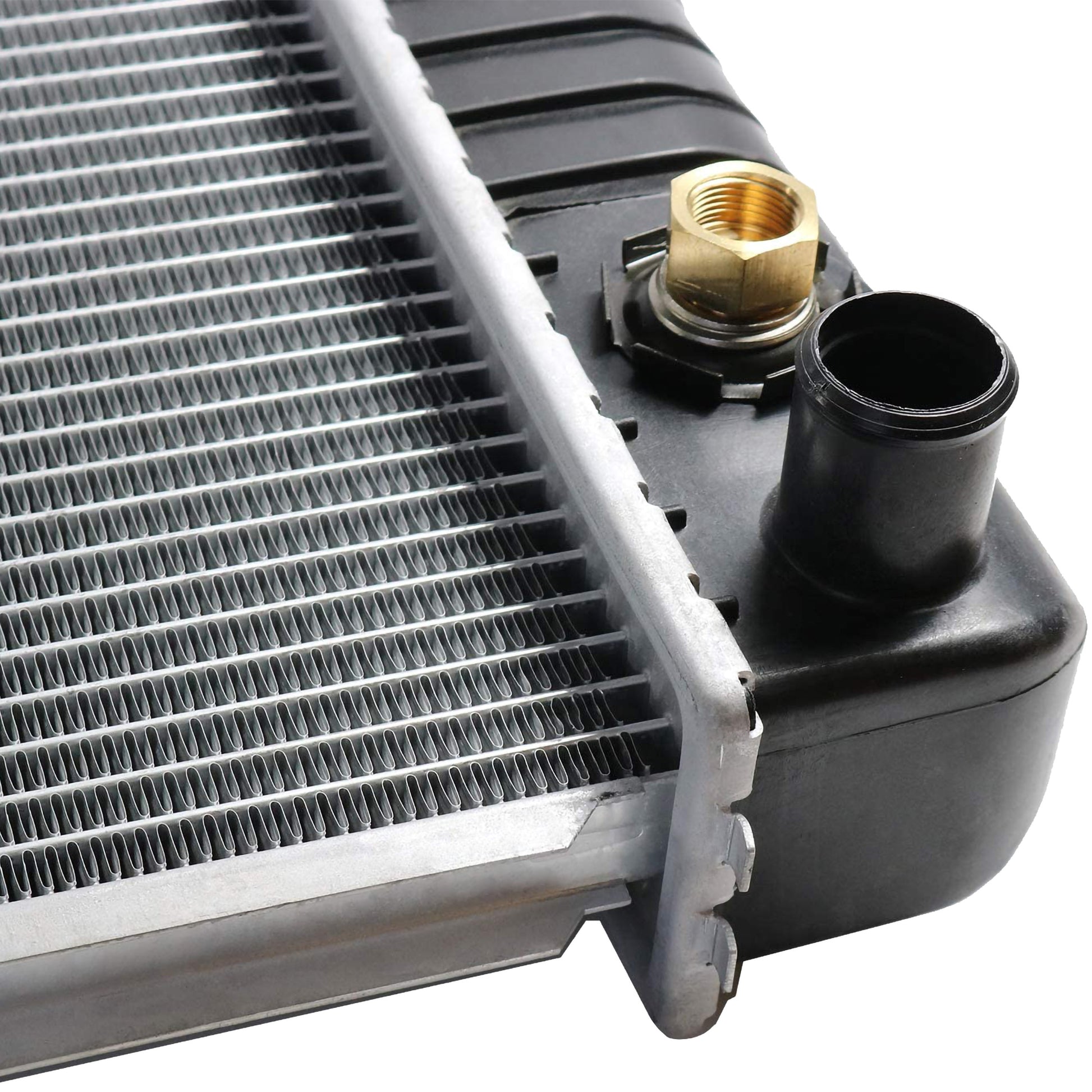

BOXI GM3010237 CU1693 Radiator Direct Replacement Assembly Compatible for Chevy C1500/K1500 Series/for GMC C1500/K1500 Yukon/for Cadillac Escalade 1994-2000 5.0L 5.7L V8 / 52465838 1522 GM3010233

Out of stock
$131.66
$131.66
Shipping calculated at checkout.
SKU: BX01300004-1
  • Fully secure checkout
  • Trusted by thousands
  • Rated and reviewed

Want next day delivery? Be quick!

I18n Error: Missing interpolation value "end_date" for "Ends on {{ end_date }}"
Sorry, it's out of stock.

But we can let you know when it's back in.

Question about this product?

We're happy to help.

Sold out
Placement on Vehicle:Front\nPackage Included:1pc Radiator

Compatible with:
1994 for GMC Yukon 5.7L
1995-1999 for Chevy C1500 5.0L
1995-1999 for Chevy C1500 5.7L
1995-2000 for Chevy C2500 5.7L
1995-1999 for Chevy C2500 5.0L
1995-2000, 2004 for Chevy C3500 5.7L
1995-1999 for Chevy K1500 5.0L
1995-1999 for Chevy K1500 5.7L
1995-2000 for Chevy K2500 5.7L
1995, 1997-1998 for Chevy K2500 5.0L
1995-2000 for Chevy K3500 5.7L
1995-1999 for GMC C1500 5.7L
1995-1999 for GMC C1500 5.0L
1995-1999 for GMC C2500 5.0L
1995-2000 for GMC C2500 5.7L
1995-2000 for GMC C3500 5.7L
1995-1999 for GMC K1500 5.0L
1995-1999 for GMC K1500 5.7L
1995, 1998 for GMC K2500 5.0L
1995-2000 for GMC K2500 5.7L
1995-2000 for GMC K3500 5.7L
1999-2000 for Cadillac Escalade 5.7L

Interchange Part Number: CU1693, GM3010233, GM3010235, GM3010237, 1693, 52465838, 52465839, 52491626

Package Included: 1 X Radiator

Specifications

Brand BOXI
Condition New
Core Material Aluminum
Engine Oil Cooler Included Yes
Tank Material Plastic
Transmission Oil Cooler Included Yes
Transmission Oil Cooler Type Plate
Cap Included No
Inlet Location Top Driver Side
Outlet Location Bottom Passenger Side
Flow Type Cross-Flow
Number Of Rows 1
Core Height (in) 16-13/16 Inch
Core Height (mm) 426mm
Core Width (in) 34-1/8 Inch
Core Width (mm) 866mm
Core Depth (in) 1-1/4 Inch
Core Depth (mm) 31mm
Inlet Hose Diameter (in) 1-5/16 Inch
Inlet Hose Diameter (mm) 33mm
Outlet Hose Diameter (in) 1-9/16 Inch
Outlet Hose Diameter (mm)Terms 40mm
Placement on Vehicle Front
Warranty Terms Two Year
Interchange Part Number JP9494, JR9494, FM9494, H79494, PN9494, R89494, R99494, 17788000045933700, 1605-370198, 1605-370717, 8011522, 1787, SPTCU1693, C1693, 0AAS5018, 0AAS5155, 2219005, HVA01558, RAD1522, RAD2551, 1522C, A2551, A1693, CR1693, OR1522, OR1693, CU1693A, A169344P3, 6033, 1522DPI, 1792DPI, 41-1522, 41-1693, 41-2551, 411792, REA411693A, 1693A, B1693, 4-0439, 40439, RDA82611, RA 1522, 376047, 9549, 9550, RAD1693, RA1185, RA 1522C, CU1693, 9548, 9547, 89019344, 89019179, 52491626, 52481442, 52481440, 52477782, 52470422, 52470421, 52470420, 52469673, 52469470, 52469467, 52469433, 52467236, 52467235, 52467234, 52467219, 52467218, 52465841, 52465840, 52465839, 52465838, 52458208, 438074, 436021, 431334, 431333, 42465841, 2644, 2551, 2547, 221-9005, 21008, 20759, 20753, 20744, 20734, 1792, 1693, 1605-291883, 16014162, 1522, 1520
